The Competitive Clock

Being first to approval does not guarantee being first to market. Program A (focal) reaches approval first, but is overtaken at launch (market entry) — losing first-to-market position.

A synthetic milestone timeline tracking six oncology programs across four stages — Phase III readout, submission, approval, and launch. Uses competitive ranking and a shaded loss window to show that regulatory speed and commercial leadership follow different clocks.

Challenge

This month’s challenge asks you to create a visual that tells a story with time as the organizing structure to help your audience understand what happened, when it happened, and why it matters

Additional information can be found HERE

Visualization

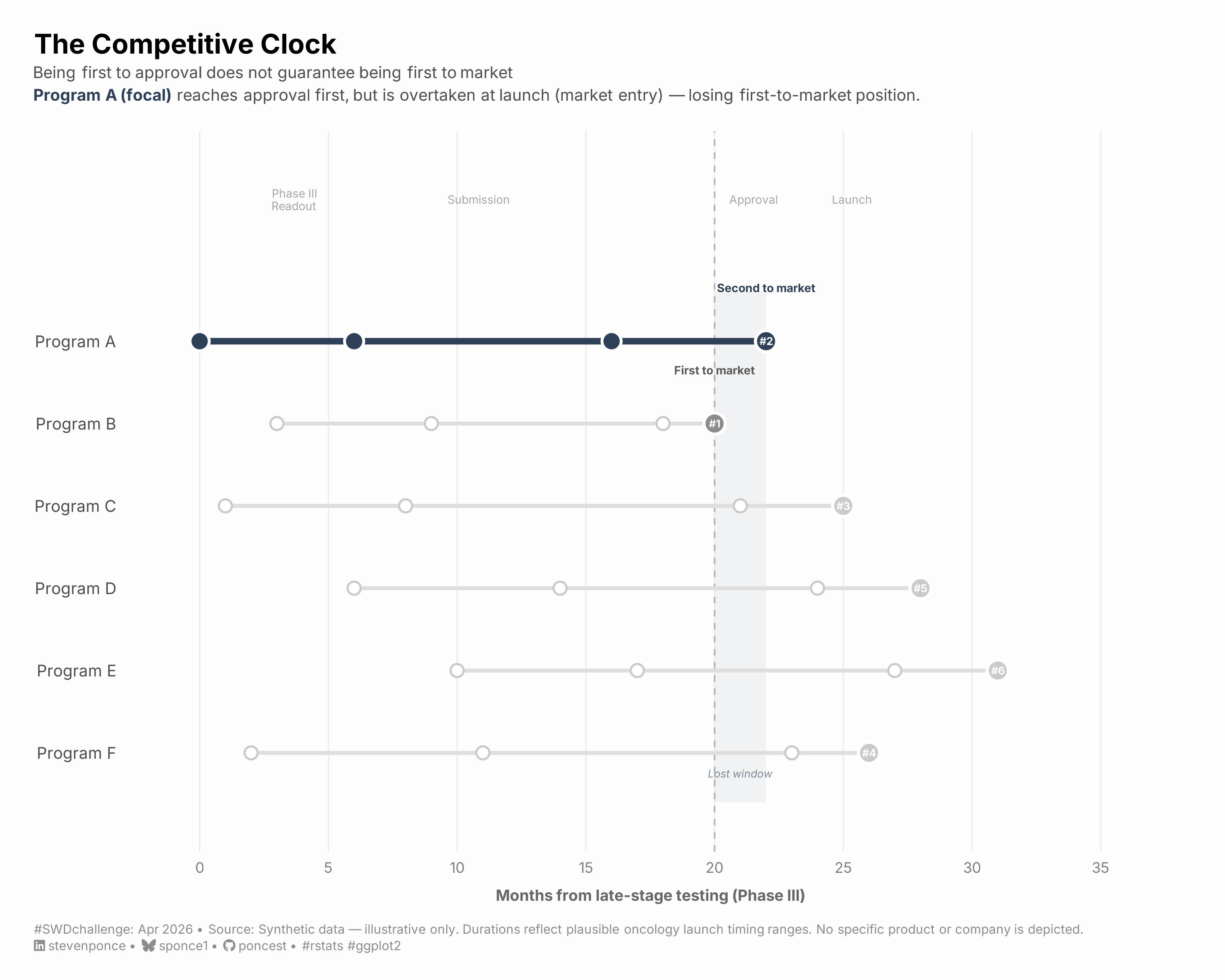

Figure 1: A horizontal milestone timeline comparing six oncology programs across four stages: Phase III readout, submission, approval, and launch. Program A (focal, dark slate) secures approval first but is overtaken at launch by Program B, which earns the #1 market-entry position. A shaded band between the two launch points marks the lost first-to-market window. Ranking labels (#1–#6) appear on each launch dot. The X-axis shows months from late-stage testing. Data are synthetic and illustrative.

Steps to Create this Graphic

1. Load Packages & Setup

```{r}
#| label: load

if (!require("pacman")) install.packages("pacman")
pacman::p_load(
  tidyverse, ggtext, showtext, janitor,
  scales, glue
)

### |- figure size ----
camcorder::gg_record(
  dir    = here::here("temp_plots"),
  device = "png",
  width  = 10,
  height = 8,
  units  = "in",
  dpi    = 320
)

# Source utility functions
suppressMessages(source(here::here("R/utils/fonts.R")))
source(here::here("R/utils/social_icons.R"))
source(here::here("R/utils/image_utils.R"))
source(here::here("R/themes/base_theme.R"))
```

2. Read in the Data

```{r}
#| label: read

### |-  Synthetic oncology launch timelines ----
# Data are illustrative and constructed to represent plausible
# industry timing patterns. No real products or companies are depicted.

# Four milestones per program (months from start of observation window):
#   ph3_end   = Phase III primary endpoint readout
#   submit    = Regulatory submission (NDA/BLA)
#   approval  = Regulatory approval
#   launch    = Commercial launch (first sales)

raw_data <- tribble(
  ~program,    ~type,        ~ph3_end, ~submit, ~approval, ~launch,
  "Program A", "focal",      0,        6,       16,        22,
  "Program B", "competitor", 3,        9,       18,        20,
  "Program C", "competitor", 1,        8,       21,        25,
  "Program D", "competitor", 6,        14,      24,        28,
  "Program E", "competitor", 10,       17,      27,        31,
  "Program F", "competitor", 2,        11,      23,        26
) |>
  # Rank by launch month — this becomes the "competitive outcome" variable
  mutate(launch_rank = rank(launch, ties.method = "first"))
```

3. Examine the Data

```{r}
#| label: examine
#| include: true
#| eval: true
#| results: 'hide'
#| warning: false

glimpse(raw_data)
```

4. Tidy Data

```{r}
#| label: tidy
#| output: false

### |-  Pivot to long for milestone plotting ----
timeline_long <- raw_data |>
  pivot_longer(
    cols      = c(ph3_end, submit, approval, launch),
    names_to  = "milestone",
    values_to = "month"
  ) |>
  mutate(
    milestone = factor(
      milestone,
      levels = c("ph3_end", "submit", "approval", "launch"),
      labels = c("Phase III\nReadout", "Submission", "Approval", "Launch")
    ),
    program = factor(program, levels = rev(c(
      "Program A", "Program B",
      "Program C", "Program D",
      "Program E", "Program F"
    )))
  )

### |-  Launch-only data for outcome encoding ----
launch_only <- raw_data |>
  mutate(
    program = factor(program, levels = rev(c(
      "Program A", "Program B",
      "Program C", "Program D",
      "Program E", "Program F"
    ))),
    launch_color = case_when(
      type == "focal" ~ "#2E4057",
      launch_rank == 1 ~ "#8C8C8C",
      TRUE ~ "#CACACA"
    ),
    rank_label = paste0("#", launch_rank)
  )

### |-  Segment data (lines connecting milestones per program) ----
segment_data <- raw_data |>
  mutate(
    program = factor(program, levels = rev(c(
      "Program A", "Program B",
      "Program C", "Program D",
      "Program E", "Program F"
    )))
  ) |>
  pivot_longer(
    cols      = c(ph3_end, submit, approval, launch),
    names_to  = "milestone",
    values_to = "month"
  ) |>
  group_by(program) |>
  mutate(
    x_start = month,
    x_end   = lead(month)
  ) |>
  filter(!is.na(x_end)) |>
  ungroup()

### |-  Reference line: first approval across all programs ----
first_approval_month <- raw_data |>
  filter(type == "competitor") |>
  summarise(first = min(approval)) |>
  pull(first)

first_launch_month <- raw_data |>
  filter(type == "competitor") |>
  summarise(first = min(launch)) |>
  pull(first)

# Focal program approval and launch
focal_approval <- raw_data |> filter(type == "focal") |> pull(approval)
focal_launch   <- raw_data |> filter(type == "focal") |> pull(launch)
```

5. Visualization Parameters

```{r}
#| label: params

### |-  plot aesthetics ----
colors <- get_theme_colors(
  palette = list(
    focal      = "#2E4057",
    focal_late = "#2E4057",
    winner     = "#A8A8A8",
    competitor = "#CACACA",
    segment    = "#DEDEDE",
    window     = "#2E4057",
    background = "#FAFAF8"
  )
)

### |-  titles and caption ----
title_text    <- "The Competitive Clock"

subtitle_text <- "Being first to approval does not guarantee being first to market<br>
<span style='color:#2E4057;'>**Program A (focal)**</span> reaches approval first,
but is overtaken at launch (market entry) — losing first-to-market position."

caption_text <- create_swd_caption(
  year        = 2026,
  month       = "Apr",
  source_text = "Synthetic data — illustrative only. Durations reflect plausible oncology
  launch timing ranges. No specific product or company is depicted."
)

### |- fonts ----
setup_fonts()
fonts <- get_font_families()

### |- plot theme ----
base_theme <- create_base_theme(colors)

weekly_theme <- extend_weekly_theme(
  base_theme,
  theme(
    # Axes
    axis.title.x = element_text(size = 9, color = "gray40", margin = margin(t = 8)),
    axis.title.y = element_blank(),
    axis.text.y = element_text(size = 9.5, face = "plain"),
    axis.text.x = element_text(size = 8.5, color = "gray50"),
    axis.ticks = element_blank(),

    # Grid: vertical guides only, very light
    panel.grid.major.x = element_line(color = "gray92", linewidth = 0.35),
    panel.grid.major.y = element_blank(),
    panel.grid.minor = element_blank(),

    # Milestone header strip (via facet or manual annotation)
    plot.title = element_text(size = 16, face = "bold", margin = margin(b = 4)),
    plot.subtitle = element_markdown(
      size = 9.5, lineheight = 1.4,
      color = "gray30", margin = margin(b = 16)
    ),
    plot.caption = element_markdown(
      size = 7.5, color = "gray55",
      lineheight = 1.3, hjust = 0,
      margin = margin(t = 12)
    ),
    plot.margin = margin(t = 20, r = 30, b = 16, l = 20)
  )
)

theme_set(weekly_theme)
```

6. Plot

```{r}
#| label: plot
#| output: false

### |- main plot ----
p <- ggplot() +

  # Geoms
  annotate(
    "rect",
    xmin  = first_launch_month,
    xmax  = focal_launch,
    ymin  = 0.4,
    ymax  = 6.6,
    fill  = "#2E4057",
    alpha = 0.06
  ) +
  geom_vline(
    xintercept = first_launch_month,
    linetype   = "dashed",
    linewidth  = 0.45,
    color      = "gray60",
    alpha      = 0.7
  ) +
  geom_segment(
    data      = segment_data |> filter(type == "competitor"),
    mapping   = aes(x = x_start, xend = x_end, y = program, yend = program),
    color     = colors$palette$segment,
    linewidth = 1.1
  ) +
  geom_segment(
    data      = segment_data |> filter(type == "focal"),
    mapping   = aes(x = x_start, xend = x_end, y = program, yend = program),
    color     = colors$palette$focal,
    linewidth = 1.8
  ) +
  geom_point(
    data    = timeline_long |> filter(type == "competitor", milestone != "Launch"),
    mapping = aes(x = month, y = program),
    shape   = 21,
    size    = 3.0,
    fill    = "white",
    color   = colors$palette$competitor,
    stroke  = 0.9
  ) +
  geom_point(
    data    = timeline_long |> filter(type == "focal", milestone != "Launch"),
    mapping = aes(x = month, y = program),
    shape   = 21,
    size    = 4.5,
    fill    = colors$palette$focal,
    color   = "white",
    stroke  = 1.2
  ) +
  geom_point(
    data    = launch_only,
    mapping = aes(x = launch, y = program),
    shape   = 21,
    size    = 5.0,
    fill    = launch_only$launch_color,
    color   = "white",
    stroke  = 1.3
  ) +
  geom_text(
    data     = launch_only,
    mapping  = aes(x = launch, y = program, label = rank_label),
    size     = 2.2,
    color    = "white",
    fontface = "bold",
    hjust    = 0.5,
    vjust    = 0.5
  ) +

  # Annotate
  annotate("text",
    x          = first_launch_month,
    y          = 5.65,
    label      = "First to market",
    size       = 2.4,
    color      = "gray35",
    hjust      = 0.5,
    fontface   = "bold"
  ) +
  annotate("text",
    x          = focal_launch,
    y          = 6.65,
    label      = "Second to market",
    size       = 2.4,
    color      = "#2E4057",
    hjust      = 0.5,
    fontface   = "bold"
  ) +
  annotate("text",
    x          = (first_launch_month + focal_launch) / 2,
    y          = 0.75,
    label      = "Lost window",
    size       = 2.2,
    color      = "#2E4057",
    hjust      = 0.5,
    alpha      = 0.6,
    fontface   = "italic"
  ) +
  annotate("text",
    x = mean(raw_data$ph3_end), y = 7.72,
    label = "Phase III\nReadout", size = 2.4, color = "gray65",
    hjust = 0.5, lineheight = 0.9
  ) +
  annotate("text",
    x = mean(raw_data$submit), y = 7.72,
    label = "Submission", size = 2.4, color = "gray65", hjust = 0.5
  ) +
  annotate("text",
    x = mean(raw_data$approval), y = 7.72,
    label = "Approval", size = 2.4, color = "gray65", hjust = 0.5
  ) +
  annotate("text",
    x = mean(raw_data$launch), y = 7.72,
    label = "Launch", size = 2.4, color = "gray65", hjust = 0.5
  ) +

  # Scales
  scale_x_continuous(
    name   = "Months from late-stage testing (Phase III)",
    breaks = seq(0, 35, by = 5),
    limits = c(-1, 36)
  ) +
  scale_y_discrete() +
  coord_cartesian(ylim = c(0.4, 7.95), clip = "off") +

# Labs
labs(
  title    = title_text,
  subtitle = subtitle_text,
  caption  = caption_text
)
```

7. Save

```{r}
#| label: save

### |-  plot image ----
save_plot(
  p,
  type = 'swd',
  year = 2026,
  month = 04,
  width  = 10,
  height = 8,
  )
```

8. Session Info

TipExpand for Session Info

R version 4.3.1 (2023-06-16 ucrt)
Platform: x86_64-w64-mingw32/x64 (64-bit)
Running under: Windows 11 x64 (build 26100)

Matrix products: default


locale:
[1] LC_COLLATE=English_United States.utf8
[2] LC_CTYPE=English_United States.utf8
[3] LC_MONETARY=English_United States.utf8
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.utf8

time zone: America/New_York
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] here_1.0.2      glue_1.8.0      scales_1.4.0    janitor_2.2.1
 [5] showtext_0.9-7  showtextdb_3.0  sysfonts_0.8.9  ggtext_0.1.2
 [9] lubridate_1.9.5 forcats_1.0.1   stringr_1.6.0   dplyr_1.2.0
[13] purrr_1.2.1     readr_2.2.0     tidyr_1.3.2     tibble_3.2.1
[17] ggplot2_4.0.2   tidyverse_2.0.0 pacman_0.5.1

loaded via a namespace (and not attached):
 [1] gtable_0.3.6       xfun_0.56          htmlwidgets_1.6.4  tzdb_0.5.0
 [5] vctrs_0.7.1        tools_4.3.1        generics_0.1.4     curl_7.0.0
 [9] gifski_1.32.0-2    pkgconfig_2.0.3    RColorBrewer_1.1-3 S7_0.2.0
[13] lifecycle_1.0.5    compiler_4.3.1     farver_2.1.2       textshaping_1.0.4
[17] codetools_0.2-19   snakecase_0.11.1   litedown_0.9       htmltools_0.5.9
[21] yaml_2.3.12        pillar_1.11.1      camcorder_0.1.0    magick_2.8.6
[25] commonmark_2.0.0   tidyselect_1.2.1   digest_0.6.39      stringi_1.8.7
[29] rsvg_2.6.2         rprojroot_2.1.1    fastmap_1.2.0      grid_4.3.1
[33] cli_3.6.5          magrittr_2.0.3     withr_3.0.2        timechange_0.4.0
[37] rmarkdown_2.30     otel_0.2.0         ragg_1.5.0         hms_1.1.4
[41] evaluate_1.0.5     knitr_1.51         markdown_2.0       rlang_1.1.7
[45] gridtext_0.1.6     Rcpp_1.1.1         xml2_1.5.2         svglite_2.1.3
[49] rstudioapi_0.18.0  jsonlite_2.0.0     R6_2.6.1           systemfonts_1.3.2

9. GitHub Repository

TipExpand for GitHub Repo

The complete code for this analysis is available in swd_2026_04.qmd. For the full repository, click here.

10. References

TipExpand for References

SWD Challenge: - Storytelling with Data: Apr 2026 | visualize a timeline

Data Sources: - All data are synthetic and illustrative. Timelines were constructed to reflect plausible oncology drug development and launch timing ranges. No specific product, company, or trial is depicted.

Background References: - U.S. Food & Drug Administration. (2024). Novel Drug Approvals for 2024. https://www.fda.gov/patients/drug-development-process/step-3-clinical-research - Deloitte. (2024). Measuring the return from pharmaceutical innovation. https://www.deloitte.com/global/en/Industries/life-sciences/research/measuring-return-pharmaceutical-innovation.html

Book Reference: - Knaflic, C. N. (2019). storytelling with data: let’s practice! Wiley.

11. Custom Functions Documentation

Note📦 Custom Helper Functions

This analysis uses custom functions from my personal module library for efficiency and consistency across projects.

Functions Used:

• fonts.R: setup_fonts(), get_font_families() - Font management with showtext
• social_icons.R: create_social_caption() - Generates formatted social media captions
• image_utils.R: save_plot() - Consistent plot saving with naming conventions
• base_theme.R: create_base_theme(), extend_weekly_theme(), get_theme_colors() - Custom ggplot2 themes

Why custom functions?
These utilities standardize theming, fonts, and output across all my data visualizations. The core analysis (data tidying and visualization logic) uses only standard tidyverse packages.

Source Code:
View all custom functions → GitHub: R/utils
